A-Frame Cabin Plan, A-Frame Tiny Plan, 20x24 Tiny House, A-Frame Blueprint, Small House Plans

This is the complete 20'x24' A-Frame Tiny House Diy Plans including everything you need to build Cabin House. Roof covering is "Galvanized Steel Roof Panel"
Measurements are in imperial units.
This Project is the Nominal Lumber Size.

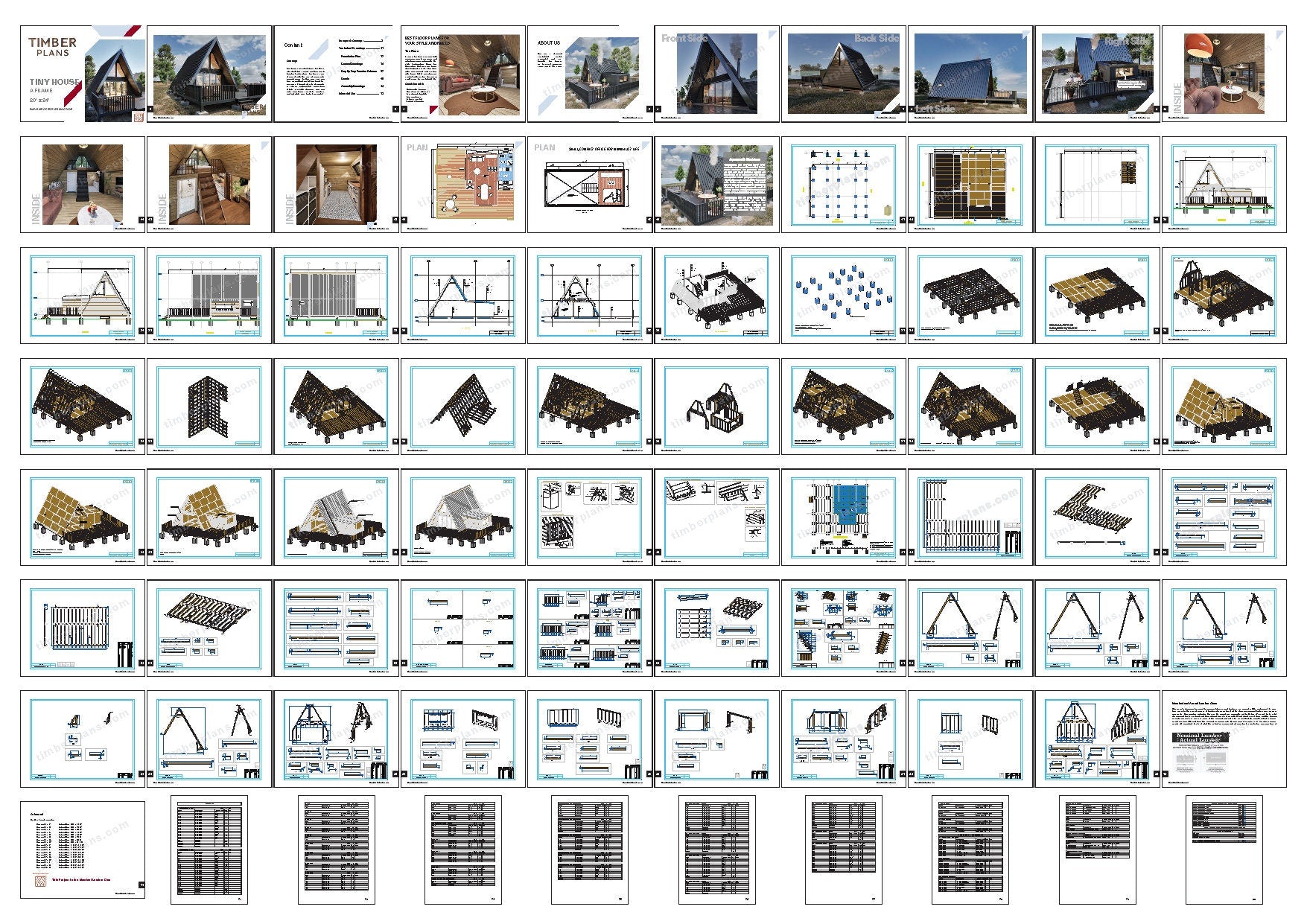

The PDF is 80 pages, made with high quality plans and images, and can be easily printed on 8.5" x 11" letter sheets.

FEATURES :
• Size: 20’ X 24’
•Foundation Type : Reinforced Concrete

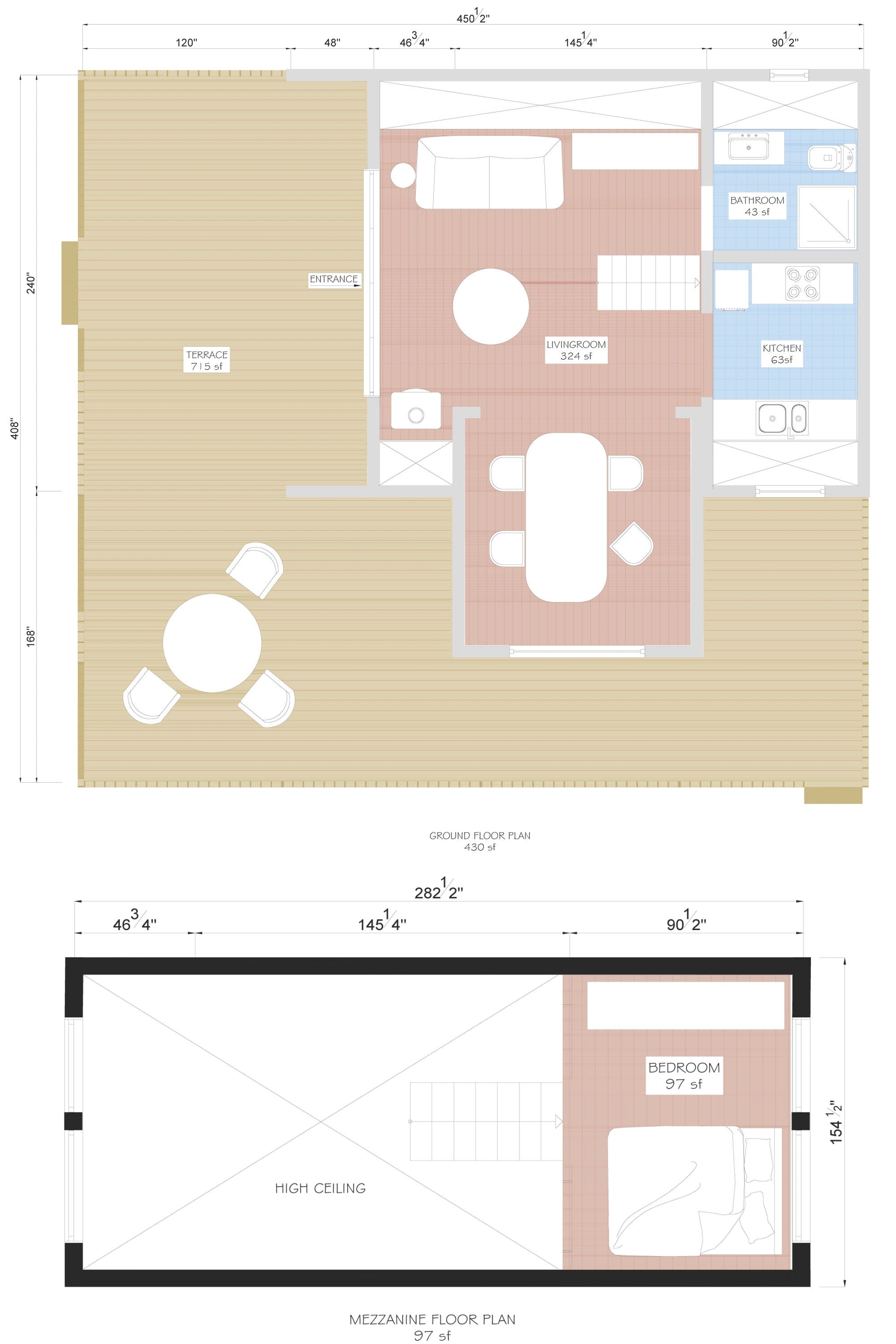

•Ground Floor :
-Living Room 324 sf
-Kitchen 43 sf
-Bathroom 63 sf.
-Terrace 715 sf.
•Mezzanine Floor :
-Bedroom 97 sf.

PLANS INCLUDE :
-Exterior Render
-Interior Render

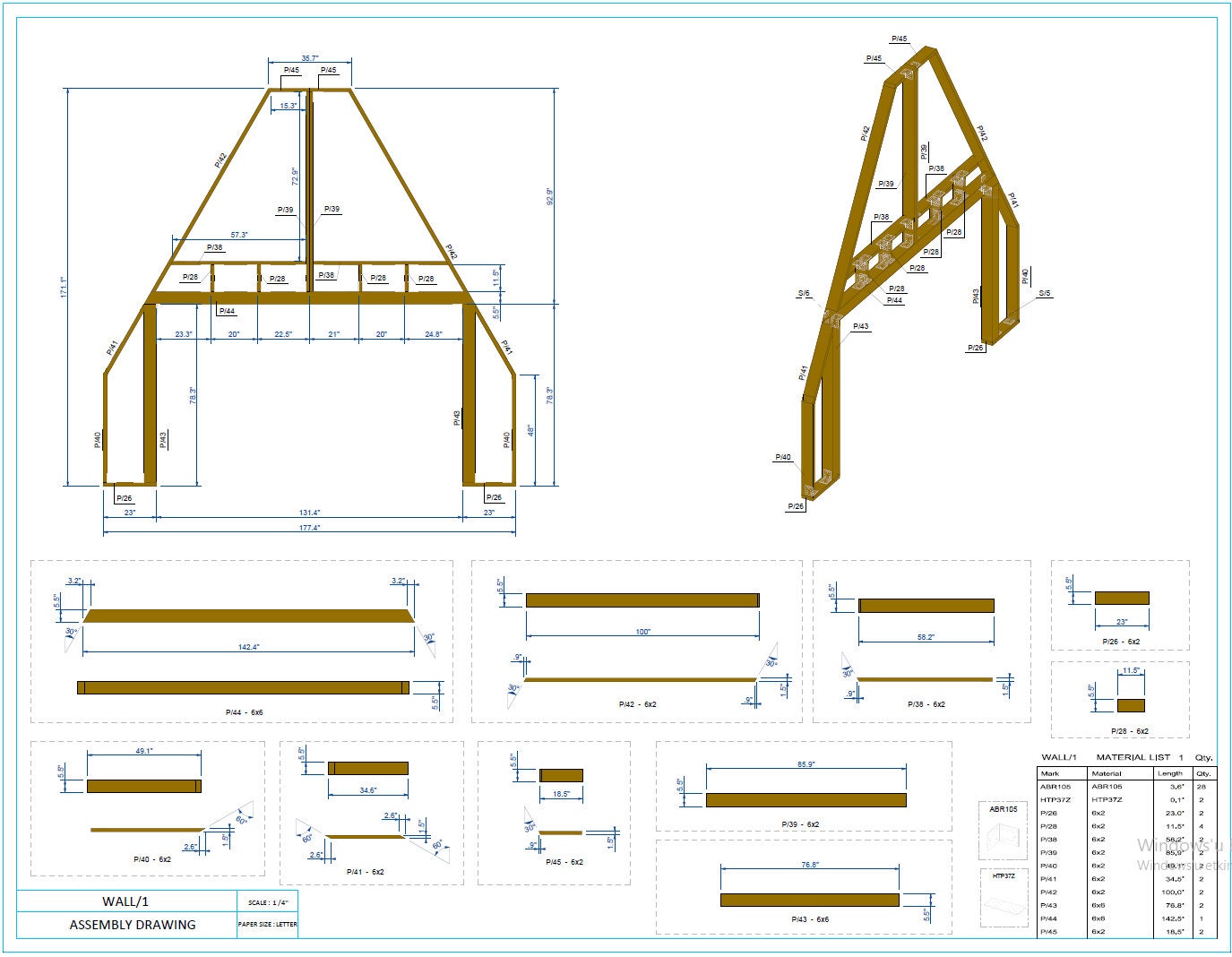

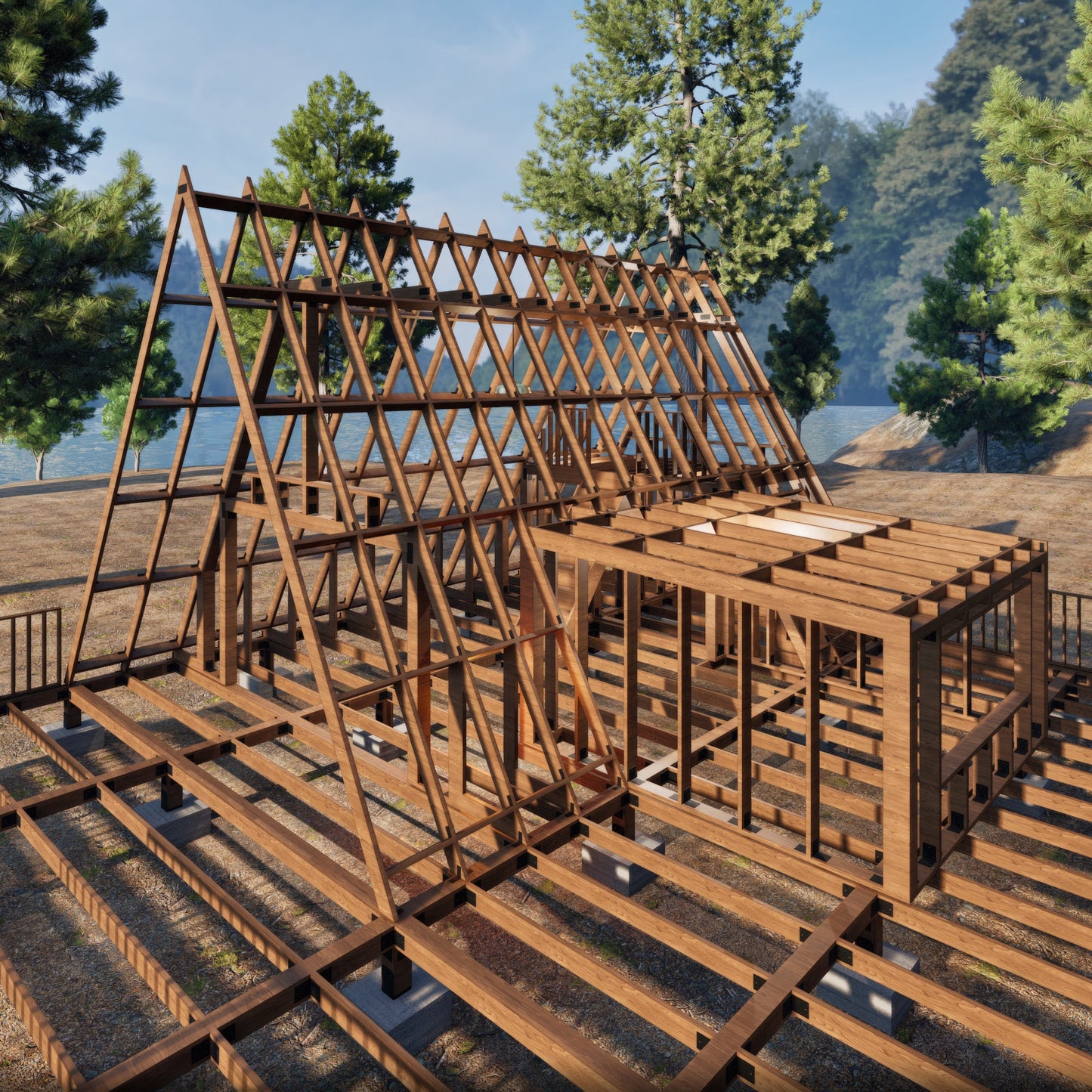

-Detailed Manufacturing Pictures (Structural Plans)
-Foundation Details
-Detailed Material List
-Connection Details Insulation
-Details Step By Step Practice Scheme

Detailed a-frame build plans
A-frame cabin plans and blueprints
Optimized for easy assembly and cost-efficiency

PLANS NOT INCLUDE :
-Electrical Plan
-Plumbing Plan

This listing is for instant digital PDF plan downloads: no physical product is included!
This digital products does NOT return or exchanged.

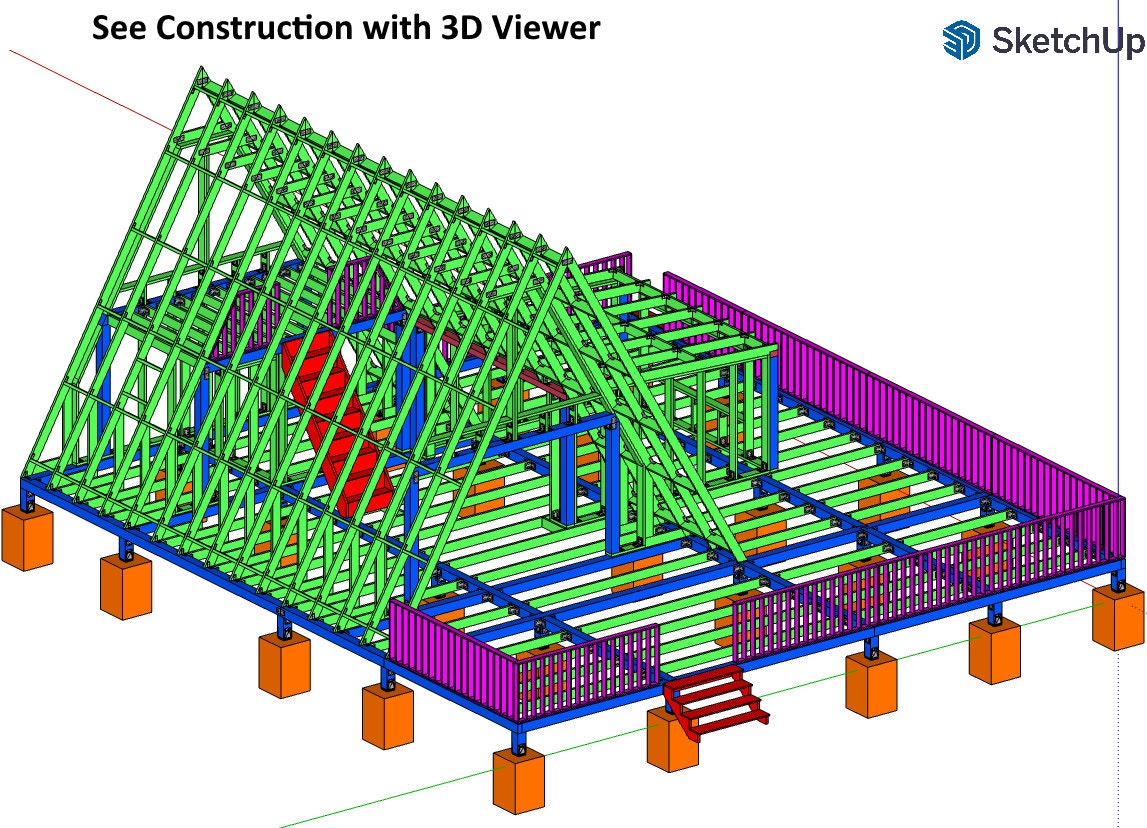

Examine the 3D construction model with SketchUp Viewer,
SketchUp file is not provided.

Agrement & Disclaimer
Timberplans, has prepared these documents to meet generally accepted Professional standards and practices. However, they have been designed without any knowledge of or reference to the licensee’s specific site or geographical location.
İt is the licensee’s responsibility to consult with his/her chosen builder, local building department and structural engineer to determine that these documents meet all current federal, state/provincial and local codes, ordinances/bylaws and regulations.
Timberplans, has not been engaged for construction supervision of any kind and assumes no responsibility to ensure that construction conforms to these plans, nor has any safety precautions in connection with the work.
All home plans are ©copyrighted by Timberplans. The unauthorized distribution or unlawful use of our home plans by any other individual or entity is strictly prohibited and will be pursued accordingly under copyright law. The designs, images, and content associated with our home plans are the intellectual property of Timberplans.
