A Frame Tiny House Plan, Modern A-Frame House Plan, A-Frame Cabin Plan, Easy to build, DIY House Plans, Blueprints, Mezzanine Floor

"Explore our A-Frame Tiny House Plan, featuring a Modern A-Frame House Design with a compact 20'x24' A-Frame Cabin Plan. These Easy-to-Build DIY Blueprints include a functional Mezzanine Floor, perfect for creating additional living space in your stylish and efficient A-Frame home."
This is the complete A Frame 20'x24' Tiny House Diy Plans including everything you need to build Modern Cabin House.
You can easily build.
Measurements are in imperial units (feet-inch) and metric units (cm).
This Project is the Nominal Lumber Size.

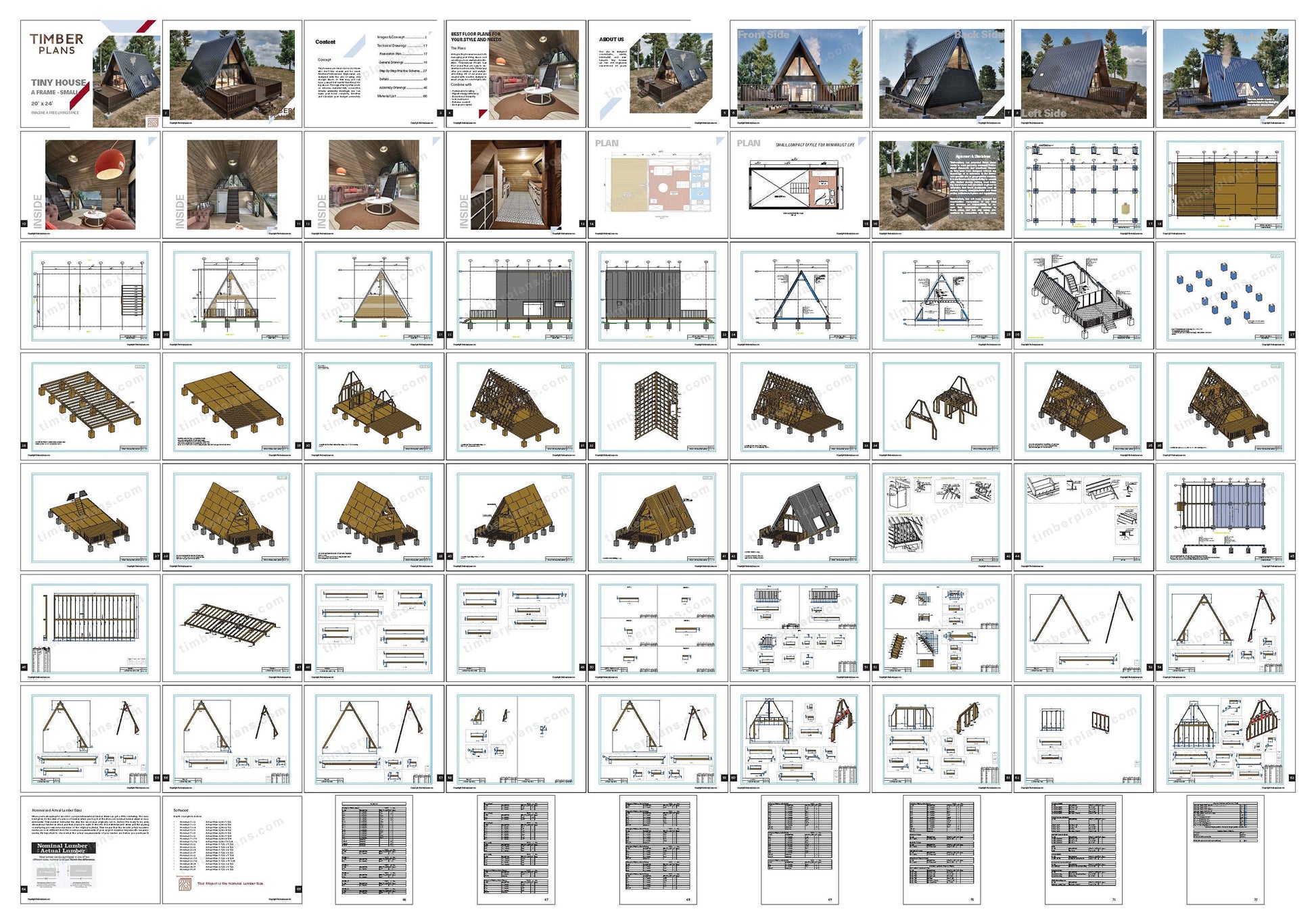

The PDF is 72 pages imperial, 68 pages metric, made with high quality plans and images, and can be easily printed on 8.5" x 11" letter sheets & A4 page size.
9 high resolution render images

FEATURES :
• Size: 20’ X 24’ (6.24m x 7.35m)

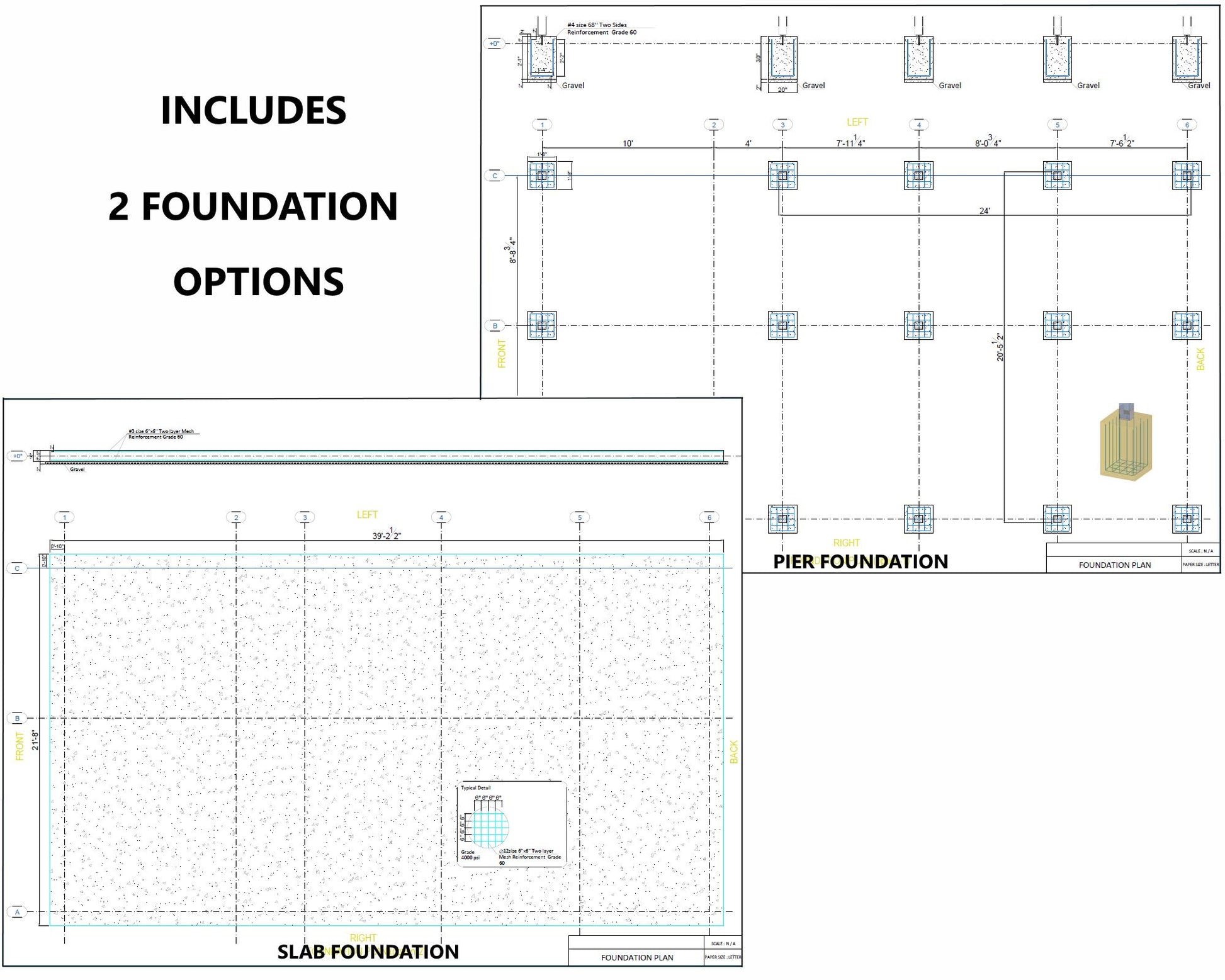

•Foundation Type : Includes 2 foundation options, pier foundation and slab foundation.

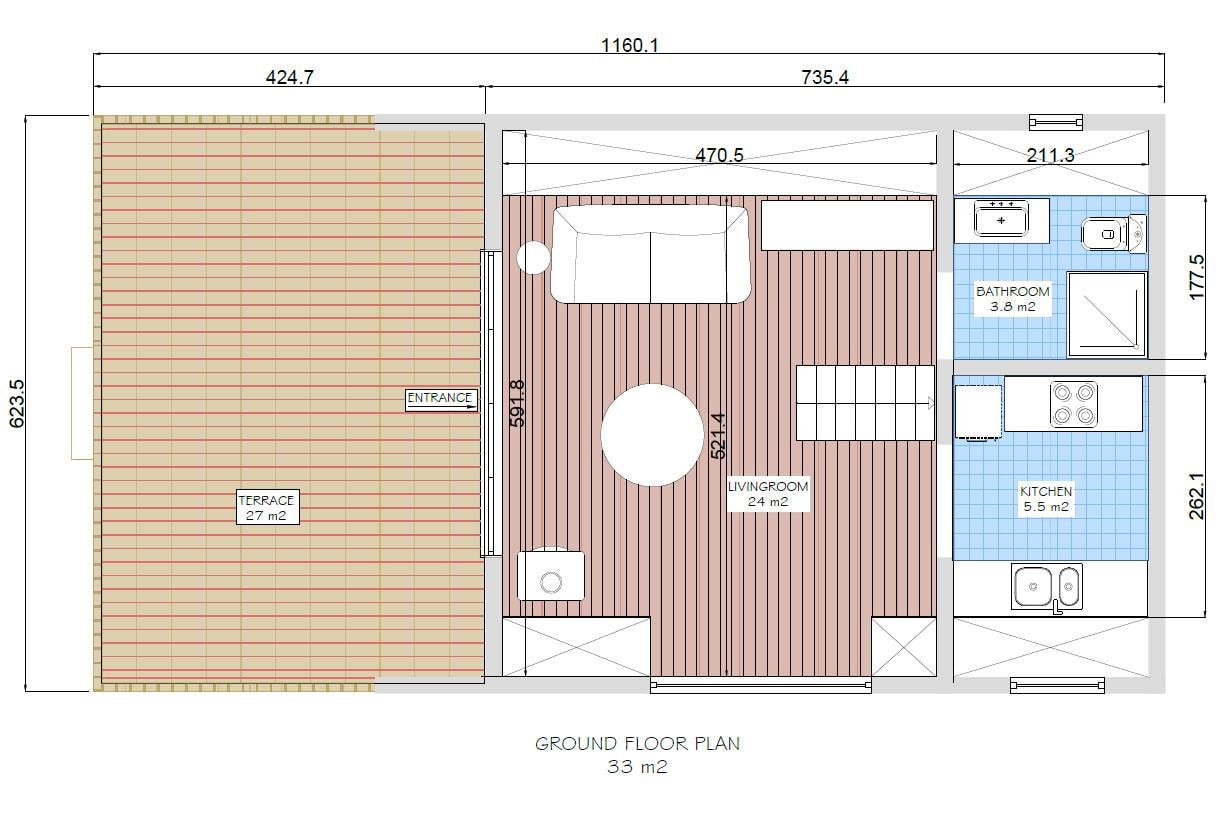

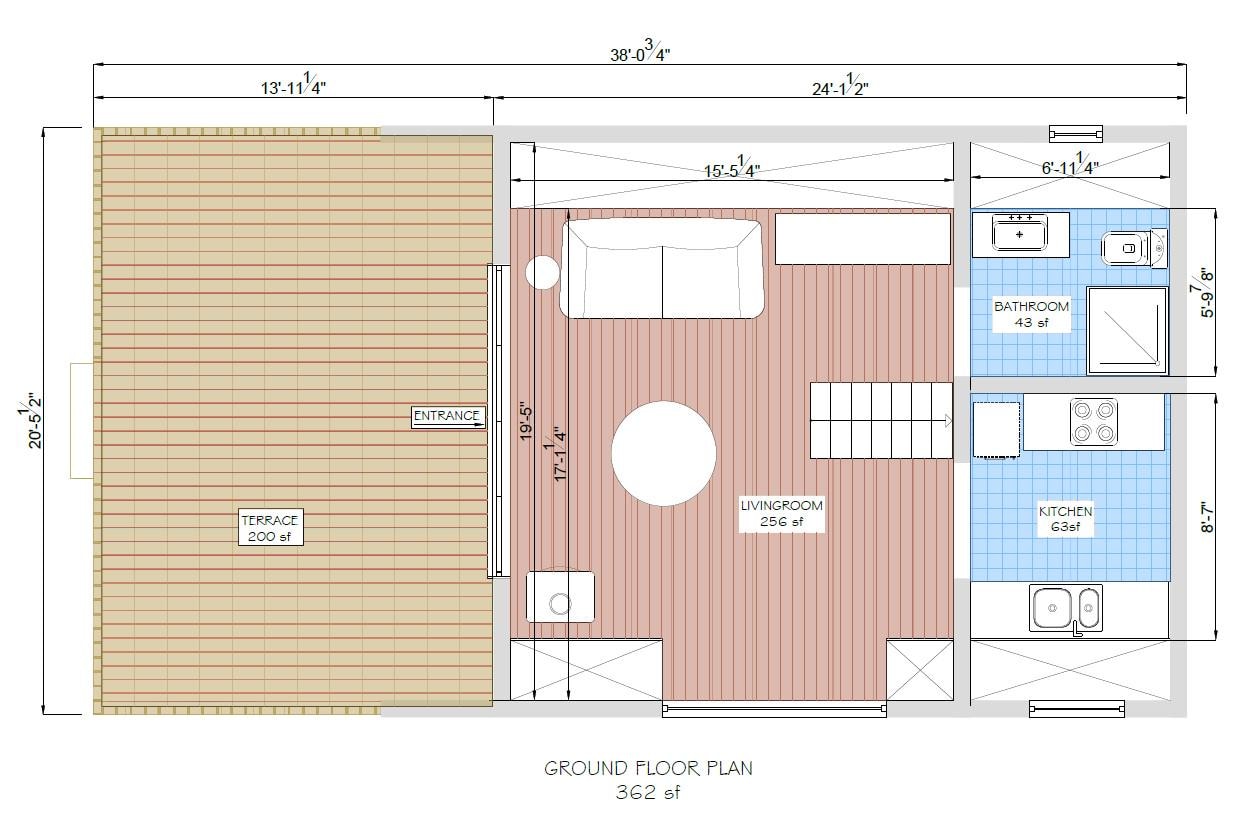

•Ground Floor :
-Living Room 256 sf (24m2)
-Kitchen 43 sf (5.5 m2)
-Bathroom 63 sf. (3.8 m2)
-Terrace 200 sf. (27 m2)
•Mezzanine Floor :
-Bedroom 97 sf. (7 m2)

PLANS INCLUDE :
-Exterior Render
-Interior Render

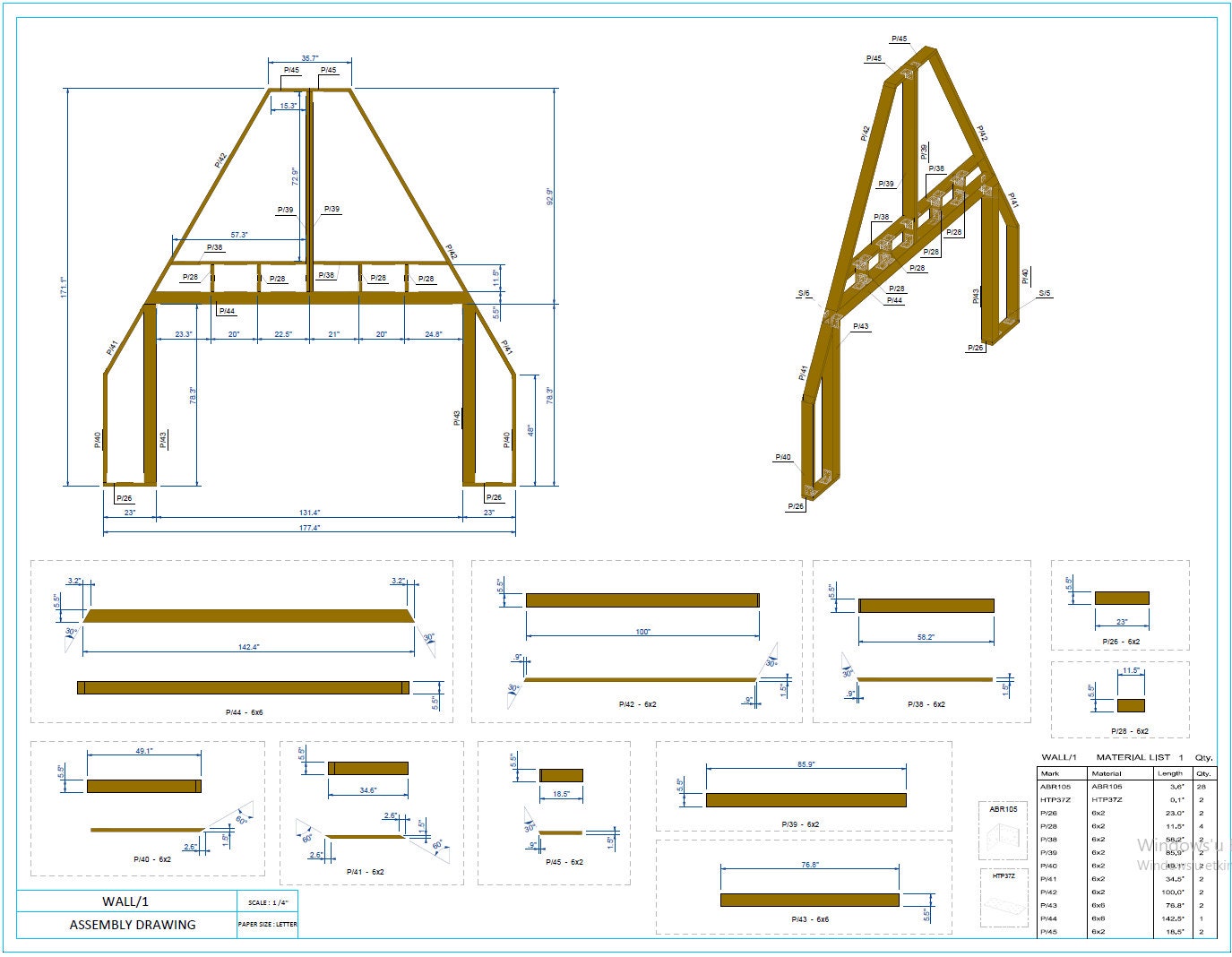

-Detailed Manufacturing Pictures (Structural Plans)
-2 Foundation Details
-Detailed Material List
-Connection Details Insulation
-Details Step By Step Practice Scheme

Detailed a-frame build plans
A-frame cabin plans and blueprints
Optimized for easy assembly and cost-efficiency

PLANS NOT INCLUDE :
-Electrical Plan
-Plumbing Plan

This listing is for instant digital PDF plan downloads: no physical product is included!
This digital products does NOT return or exchanged.

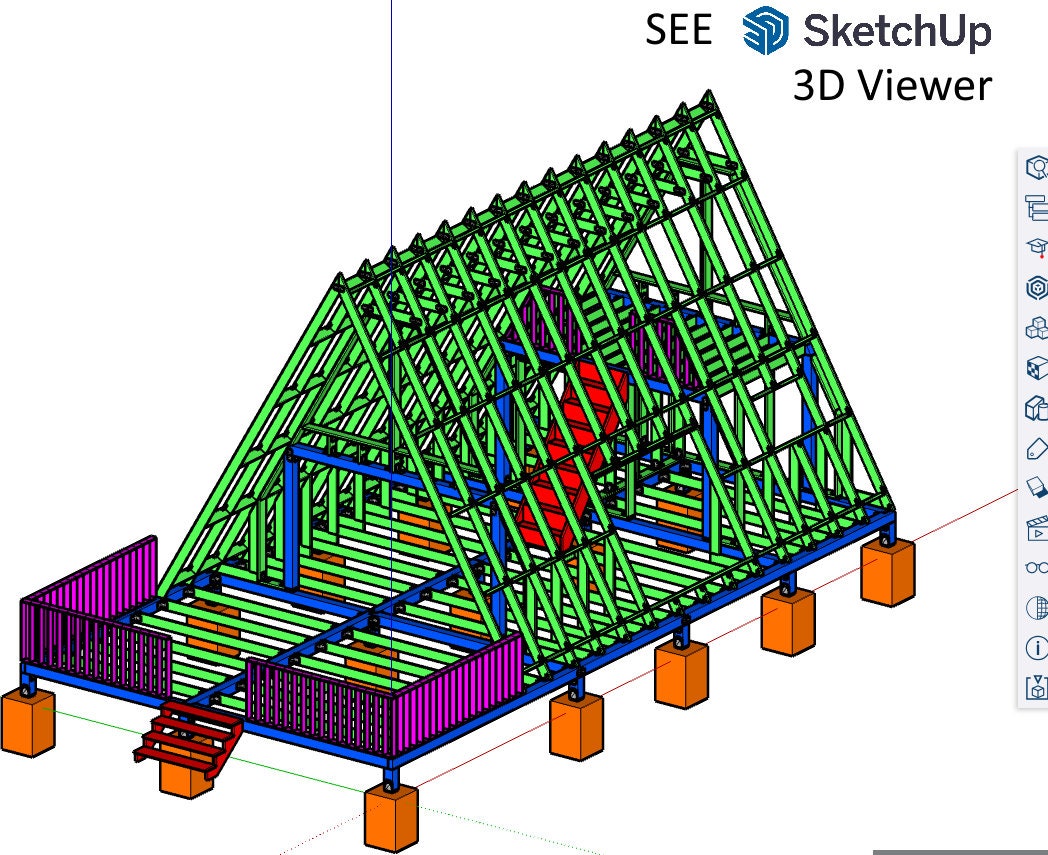

Examine the 3D construction model with SketchUp Viewer,
SketchUp file is not provided.

Agrement & Disclaimer
Timberplans, has prepared these documents to meet generally accepted Professional standards and practices. However, they have been designed without any knowledge of or reference to the licensee’s specific site or geographical location.
İt is the licensee’s responsibility to consult with his/her chosen builder, local building department and structural engineer to determine that these documents meet all current federal, state/provincial and local codes, ordinances/bylaws and regulations.
Timberplans, has not been engaged for construction supervision of any kind and assumes no responsibility to ensure that construction conforms to these plans, nor has any safety precautions in connection with the work.
All home plans are ©copyrighted by Timberplans. The unauthorized distribution or unlawful use of our home plans by any other individual or entity is strictly prohibited and will be pursued accordingly under copyright law. The designs, images, and content associated with our home plans are the intellectual property of Timberplans.
